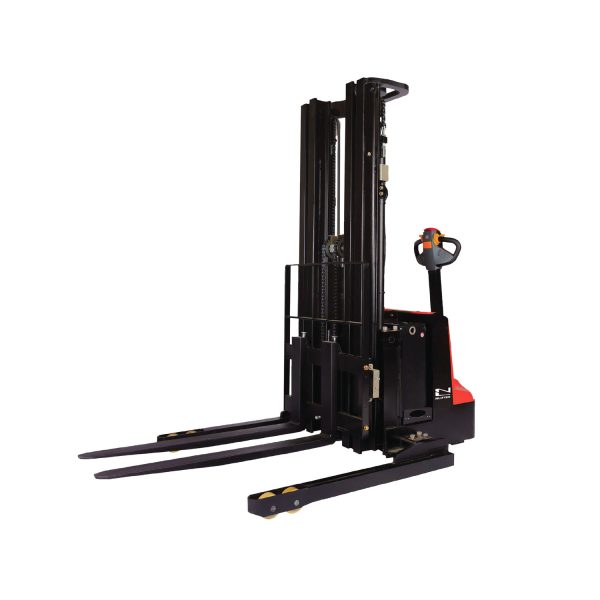

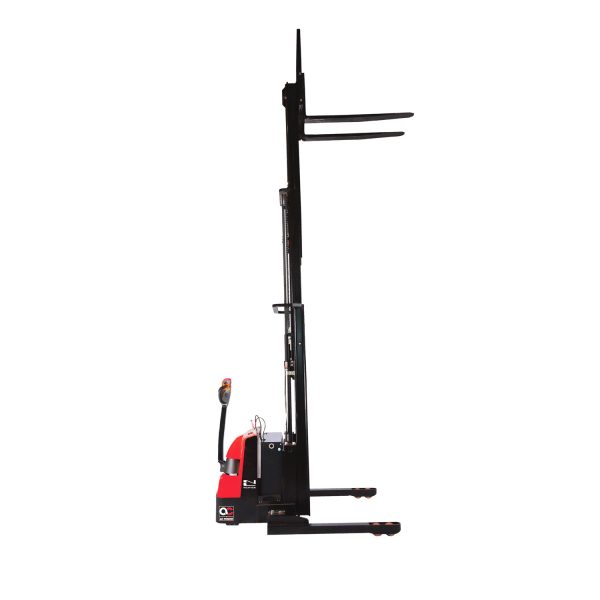

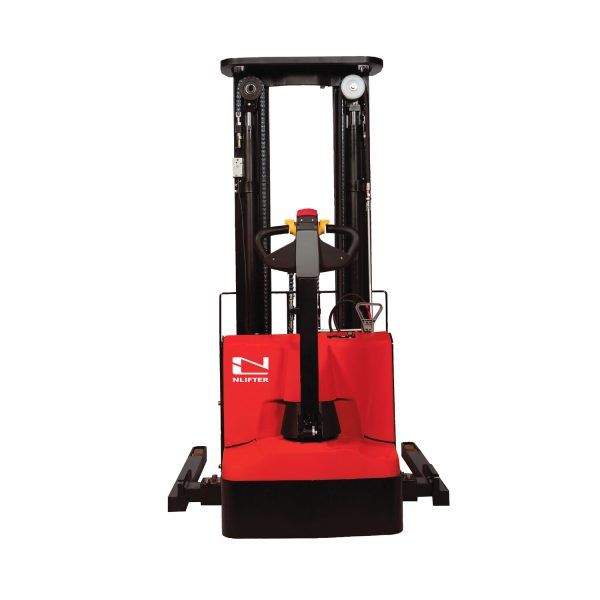

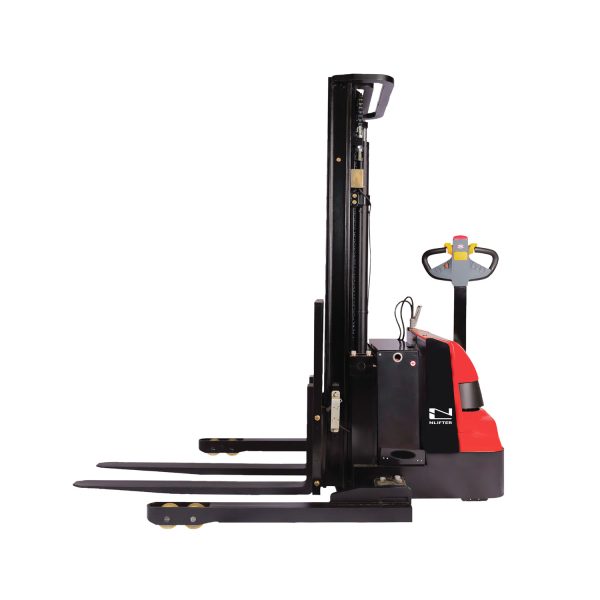

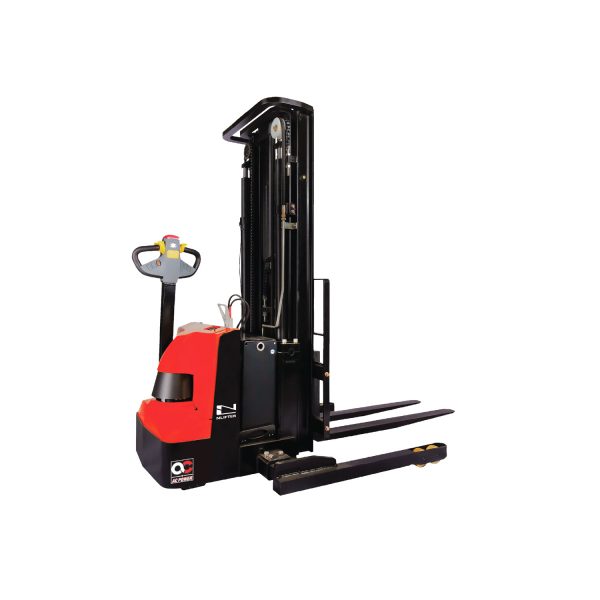

NST12EAS

Description

Have it your WAY. LIFT with it!

The new NST12EAS incorporates both ergonomic functions, and safety features deliver a balanced proposition that allows the operator to perform extended shift duties without imposing extreme physical stress on them.

Lifts up to a maximum stacking height of 4.5 meters and ample forward forks visibility angle, the operator can view better on the ground and perform an elevated load stacking tasks with a much better precision handling experience. Its curvy tiller arm and chassis are also studiously built to favor agile maneuverability. Regardless of handling loads in a space constraint environment or various load type, the NST12EAS adjustable -straddles bring greater advantage to Adapt, Adjusts and Allocate the right configurations to handle the load that weighs up to 1 .2T.

24/7 Secured

• Exclusive pin-code’ entry limits any unauthorized usage of the truck

Versatile Load Handling

• Multifunctional electronic control handle to faciliate quick controls • Adjustable straddle legs width to accommodate different pallet sizes

Quick Battery Access

• Top access to the battery for easy monitoring of the battery water level • Optional side battery change system facilitates safer battery change procedures

High Performance AC drive system

• Smooth travel speed control up to 5.5km/hr
• Competitive and powerful rated AC drive motor allows the truck to overcome most terrains with ease

Vivid Digital Display & Controls

• Standard LED indicators displays Battery level, On/Off status, Running Hours and Fault Code
• Multifunctional electronic control handle to facilitate quick controls over simultaneous lift and travel

Easy Maintenance and Serviceability

• Hassel free access to the internal key components for quick inspection, maintenance, and replacement works
• Quick plug-in fault diagnostics feature for easy setting and customization of the truck parameters
• IP54 ZAPI AC controller offers better protection against water & dust ingression
• High-quality AMP connectors and durable electrical harnesses

Safe Operation

• Low voltage protection system automatically limit travel speed and disrupt lift functions when the battery level hits 20% or below
• Auto travel speed reduction to half speed when exceeding the free lift height
• Down safety valve limit sudden forks drop upon hydraulics failure
• Creep speed mode automatically decreases the truck travel speed when the tiller arm is at near vertical position
• Standard clear mast guard keeps the operator protected against any direct splashed impact
• Full electromagnetic brakes with anti-rollback function
• Low bottom frame design keeps the operator foot out of the undercarriage
• Optional cold store application available to work at -20 degree Celsius environment
  • Not available with proportional lift valve fitting
